3LIONSYSTEM est le système avancé d’énergie composé de batteries au lithium NDS avec la technologie LiFePO4 et BMS interne, qui combiné avec le 3Link (unité de contrôle) garantissent une autonomie totale, dans toutes les conditions! Le système énergétique profite pleinement des avantages de la technologie Lithium, en favorisant une charge rapide même sur de courtes distances, combinée aux caractéristiques intrinsèques de la batterie, telles que plus de cycles de vie et un faible poids, rendent ce système extrêmement avantageux et efficace par rapport aux batteries plomb-acide classiques.
Si vous aimez la liberté et l’indépendance avec 3LIONSYSTEM, vous pouvez donner libre cours à vos désirs: connecter de gros appareils, tels que climatiseurs, machines à café, sèche-cheveux, sans réduire la capacité ou endommager la batterie en réduisant sa durée de vie, ne sera plus un problème. Contrairement à la technologie plomb-acide, les batteries 3LION, grâce à une densité de puissance élevée, concentrent de grandes capacités dans de petites dimensions offrant toute l’autonomie que vous souhaitez sans avoir à recourir à de gros blocs de batteries.
Benefits of the 3LION System
FAST CHARGE
The high charging currents from the alternator, with the vehicle in motion, can be managed by 3LINK or from the DC-DC creating a preferential and safe charging line, without stressing the motorhome’s original system; even with the 3LION completely discharged, it will be enough to turn on the vehicle engine for 30 minutes to have a day of autonomy.
ZERO MAINTENANCE
Chemistry and internal electronics work together to make this type of battery completely maintenance-free. You will no longer need to worry about sulphation, from which this particular composition is free, nor about deep discharge damage previously caused to Lead Acid batteries.
60% LIGHTER
The very high energy density of the chemical (LiFePO4) makes the 3LION a concentrated source of power, and the weight saving is incredible: over 60% lighter than a lead-acid battery of the same capacity!
HIGH NUMBER OF CYCLES
The lithium battery charging cycles can seem almost infinite, reaching around 5 times those of conventional batteries, in some cases even exceeding the vehicle’s obsolescence! It is possible to reach 2500 cycles with 80% depth of discharge, but avoiding over-discharge, it can go up to 5000!
HEAVY-DUTY RESISTANT
The low internal resistance and special electrochemical composition enables high discharge currents to be sustained without damage. 3LION do not be afraid of using air conditioners, coffee machines, hair dryers, inverters in general, etc… Up to 4 hours with an air conditioner and up to twice the capacity of a conventional battery.
SAFE AND RELIABLE
The chemistry (LiFePO4) gives the battery a thermodynamic stability, the powerful integrated BMS (Battery Management System) protects the battery from short circuit/polarity reversal, over-voltage, over-discharge, over-temperature and finally by following our A or B configurations we avoid problems with the original electrical system.
Choose the right solution for you
ALL VEHICLES EXCEPT EURO6 WITH SMART ALTERNATOR
INSTALLATION
The original electrical system (wire, relais, etc..) is not designed to handle the lithium service battery safely, as the original control unit and wiring are often not suitable for the currents involved with lithium. For this reason, the plug and play replacing the AGM battery with a lithium battery is not recommended. 3LINK, unlike the plug&play solutions, allows the original electrical system to be bypassed without any stress.
MAIN FEATURES
Thanks to this type of system and the 3LINK, it is possible to achieve very fast recharging of the lithium-ion leisure batteries while still protecting the original electrical system.
The Touch Screen Display, included in the kit, allows you to monitor and manage all on-board batteries.
EURO6VEHICLES WITH SMART ALTERNATOR
INSTALLATION
Les nouveaux véhicules équipés d’un alternateur piloté nécessitent un DC-DC (chargeur de voyage) pour recharger les batteries auxiliaires. Le système est déjà adapté aux paramètres de charge de ce DC-DC original, qui ne changent pas même lorsqu’une batterie au lithium est installée. C’est pourquoi le remplacement de la batterie originale par une batterie 3LION est possible et sûr.
MAIN FEATURES
In this case, the charging speed depends on the characteristics of the originally installed DC-DC, so the system is always safe and has a faster installation.
With this configuration it is possible to stay up-to-date on the status of the batteries by purchasing EnergyMeter: Touch Screen Display dedicated to the management of the connected battery pack.
COFFEE MACHINE
MICROWAVE
AIR CONDITIONER
HAIR DRYER
E-BIKE
Relaxing at the ideal temperature with the air conditioning on, enjoying a hot coffee at the touch of a button, having a hot shower without no worries about using the hairdryer to dry your hair – these are all experiences usually reserved for the camping car driver, always connected to 220V, but no longer with the 3LION System!
3LION SYSTEM includes:

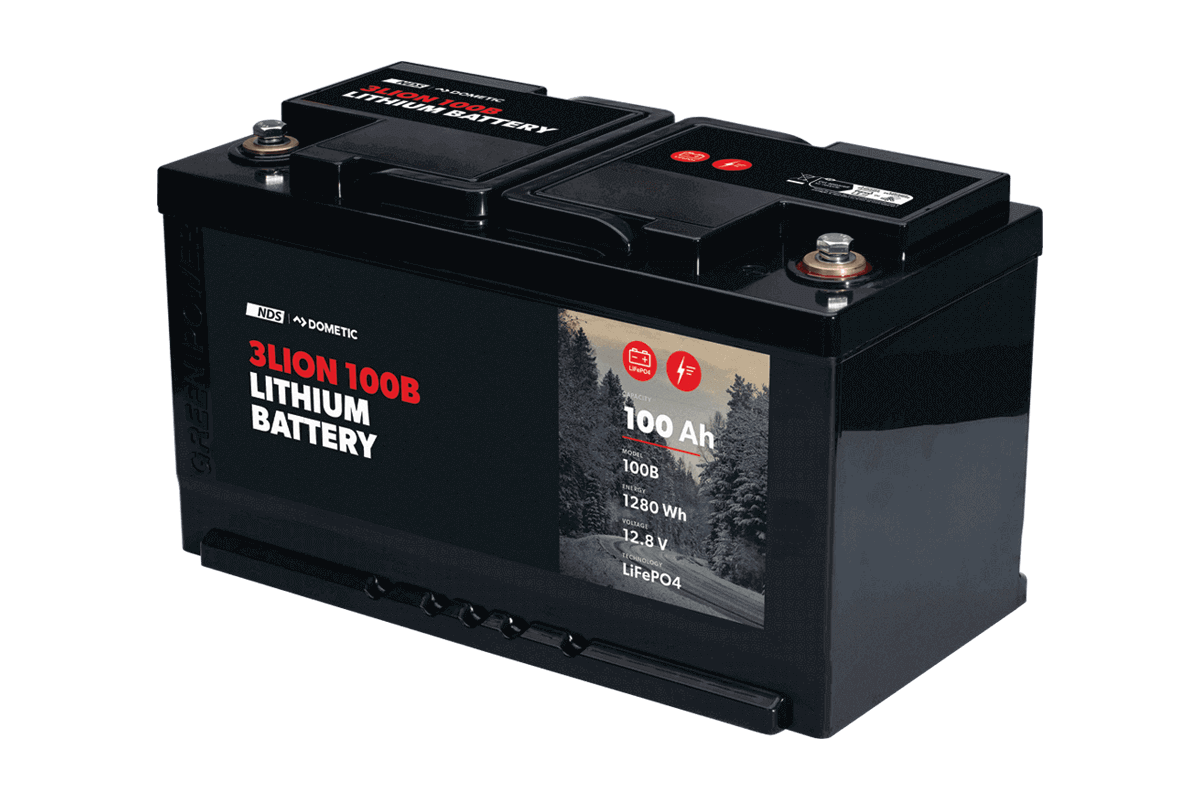

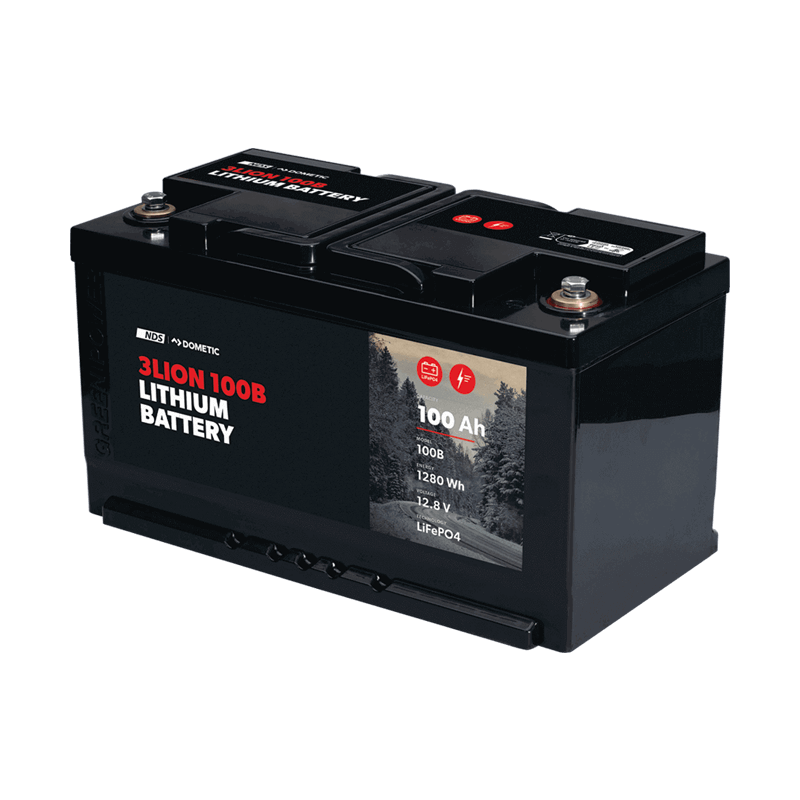

3LION Battery
3LION is the high-performance and safe lithium service battery with LiFePO4 technology.
Long life: around 2500 cycles with 80% DOD, it is equipped with an internal Battery Management System (BMS), which is essential for managing and protecting the cells.
The BMS monitors voltage, current, resistance and temperature and uses this information to keep the cells balanced, preventing internal imbalances in the battery by protecting it from: overvoltage, undervoltage, short circuit, overtemperature and overcharging.
Thanks to high power density and a more stable operating voltage, 3LION batteries are able (with the same declared capacity) to provide a much longer range than conventional batteries!

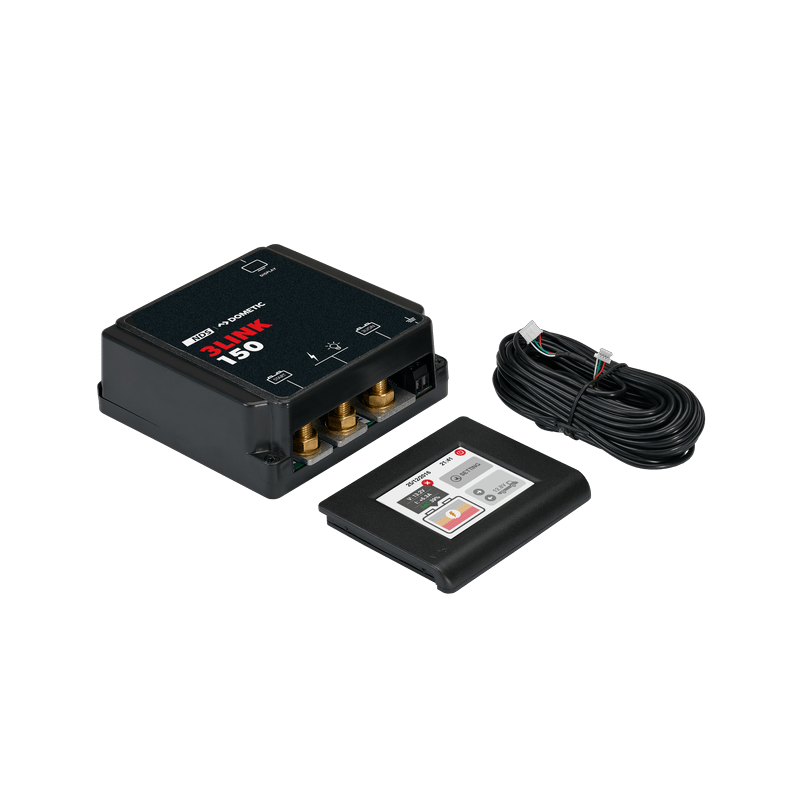

3LINK Black Box and Display
3LINK is an advanced control unit required for lithium system optimisation on recreational vehicles.
Leaving the original wiring system untouched, and connecting the3LINK system: 3LION Battery, Starter Battery and all on-board appliances (control unit, battery charger, inverter etc.), it will be possible to optimally recharge the Lithium battery with high currents while driving, without damaging the original electrical system.
The display provides information about the operation of the system, such as the charging status of 3LION, the voltage of the on-board batteries and the charging or discharging current.
3LINK gère directement la recharge à partir de la batterie moteur, branchée à l’aide de câbles d’une section appropriée, à travers de la boîte noire peut effectuer une recharge super rapide, jusqu’à 75A par heure de route (selon l’alternateur installé). Cette unité de commande représente un système de protection supplémentaire pour la précieuse batterie au lithium, en fait il contrôle constamment les courantes de charge, de décharge et le SOC et quand possible (si la batterie au lithium est complètement chargée et la source de charge connectée) il charge également la batterie moteur.
AVAILABLE MODELS AND TECHNICAL DETAILS
Code Model | L-20 | L-30 | L-60 | L-100B | L-100 | L-100P | L-150 |
Voltage | 12,8V | 12,8V | 12,8V | 12,8V | 12,8V | 12,8V | 12,8V |
Capacity | 20Ah | 30Ah | 60Ah | 100Ah | 100Ah | 100Ah | 150Ah |
max continuous discharge | 20A | 30A | 60A | 100A | 100A | 100A | 150A |
Max discharge 30min | 25A | 35A | 70A | 140A | 140A | 170A | 175A |
Max charging | 1C | 1C | 1C | 1C | 1C | 1C | 1C |
Weight | 2,7 Kg | 4,2 Kg | 7,9 Kg | 13,3 Kg | 13,8 Kg | 13,8 Kg | 20,7 Kg |
Size (mm) | 181x76x166mm | 194x130x162mm | 257x132x200mm | 337x175x190mm | 327x172x227mm | 337x157x192mm | 485x172x241mm |
With 3LION you can connect up to 4 batteries in parallel using just one 3LINK.
Just buy one 3LION SYSTEM and add as many 3LION batteries as you need (equal capacity batteries are recommended), the internal electronics will protect them from each other!
BEST WITH
Best with:

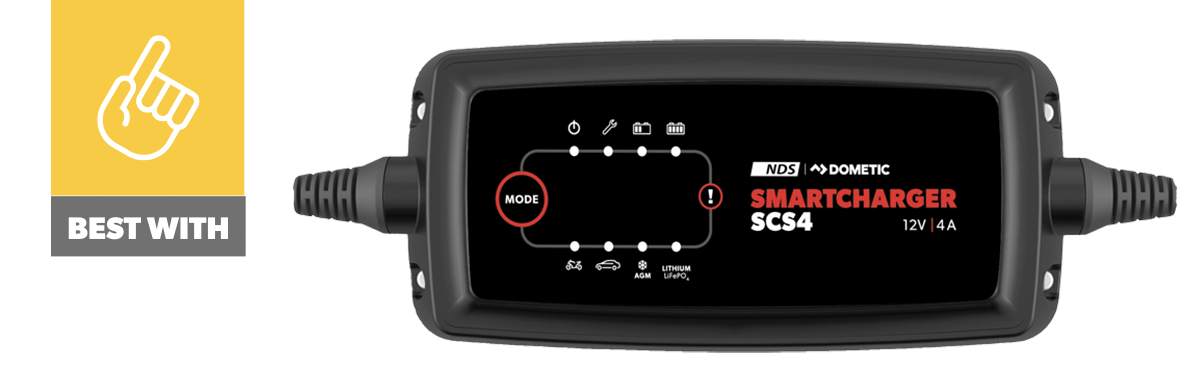

SMARTCHARGER SCS4
Best with:

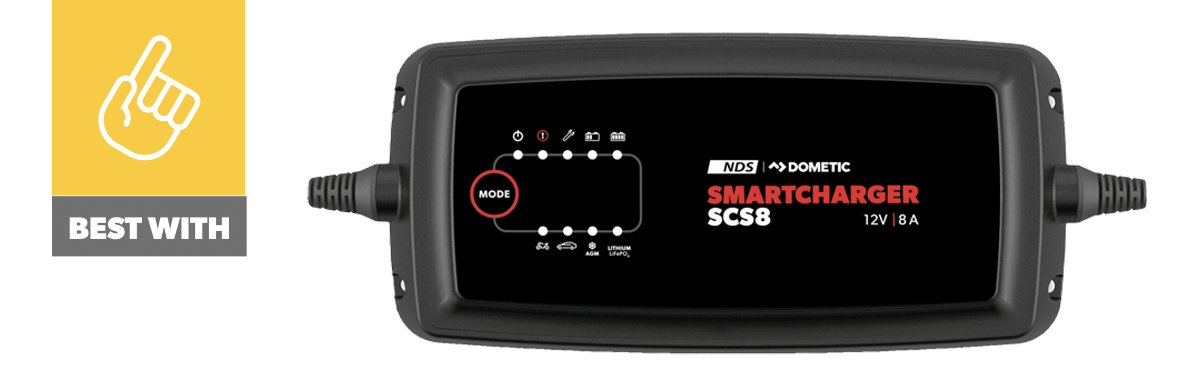

SMARTCHARGER SCS8
Best with:

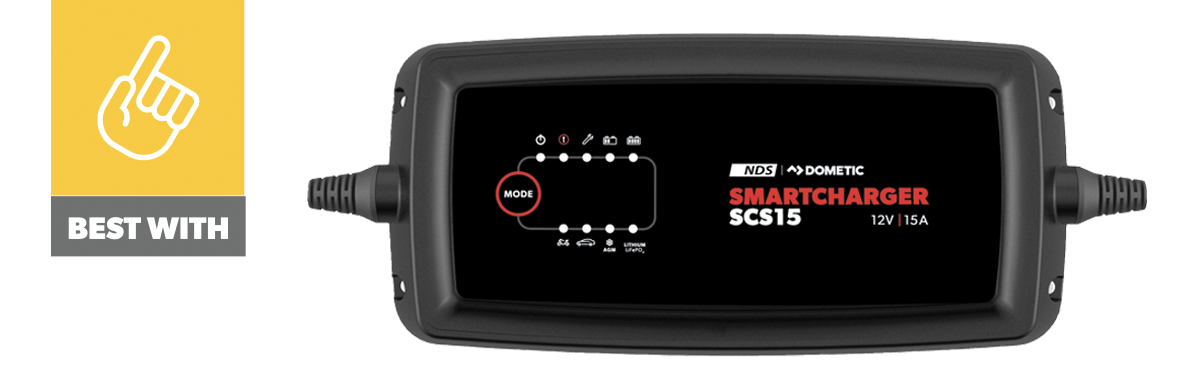

SMARTCHARGER SCS15
