Black Monocrystalline Solar Panel
ADVANTAGES
MONOCRYSTALLINE PERC CELLS WITH MORE POWER, LESS SPACE TECHNOLOGY
TOTAL BLACK
BUILT-IN BRACKETS
A P P L I C A T I O N S
BLACKSOLAR
Frame, structure, cells, strings, all completely black, full black.
BLACKSOLARS are the top of the range of solar panels for motorhomes from NDS: they capture more solar energy and, in grazing light, such as at dawn and dusk, they produce more electricity than standard modules.
The mounting bracket is integrated into the frame of the photovoltaic panel and allows the optimum distance from the mounting surface to be maintained at all times, thus ensuring the necessary ventilation of the cells and adequate aerodynamics thanks to the rounded corners.
This special monocrystalline panel is equipped with the latest generation of high-efficiency PERC photovoltaic cells, which, together with excellent raw materials, make BLACKSOLAR a state-of-the-art panel in the photovoltaic world, achieving an efficiency of 19.5%, the highest in the entire NDS solar range.
More power in LESS space
BUILT-IN BRACKET
The special aluminium brackets integrated in the panel, with aerodynamic plastic side covers make the robust panel safe, easy and quick to install.
PERC CELLS
Passivated Emitter and Rear Cell: a new technology to increase energy conversion efficiency by adding a passivated dielectric layer to the rear of the cell.
6m Cable
Each panel is equipped with a 6-metre bipolar connection cable with an all-weather protective outer sheath.

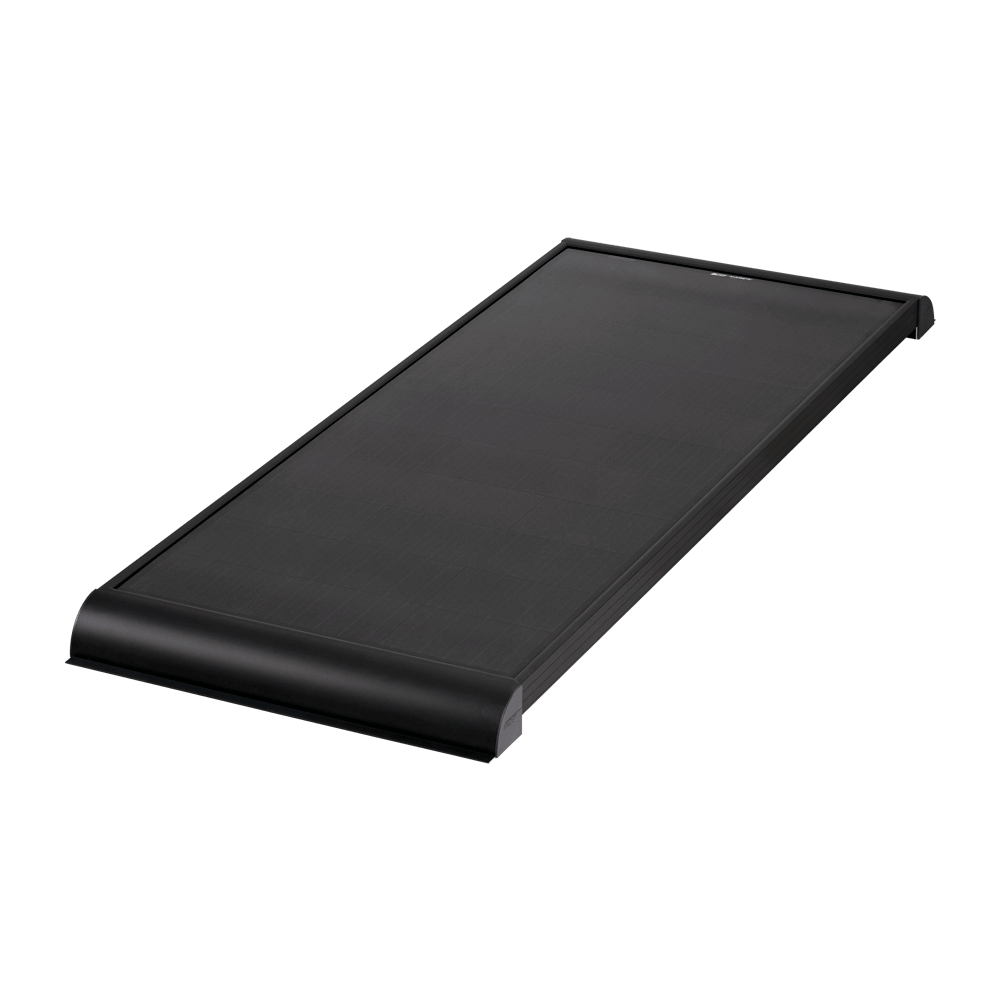

BLACKSOLAR model
BS 115WP
| Number of cells | 33 |
| Nominal voltage | 12v |
| Max Power | 115WP±3% |
| Size (mm) | 1385x530x60 |
| Weight | 10 Kg |
| Open Circuit Voltage | 22,41V |
| Short Circuit Current | 6,63A |
| Max power Voltage | 18,5V |
| Max power Current | 6,22A |
| Length 6m cable | 2×2,5mm² |

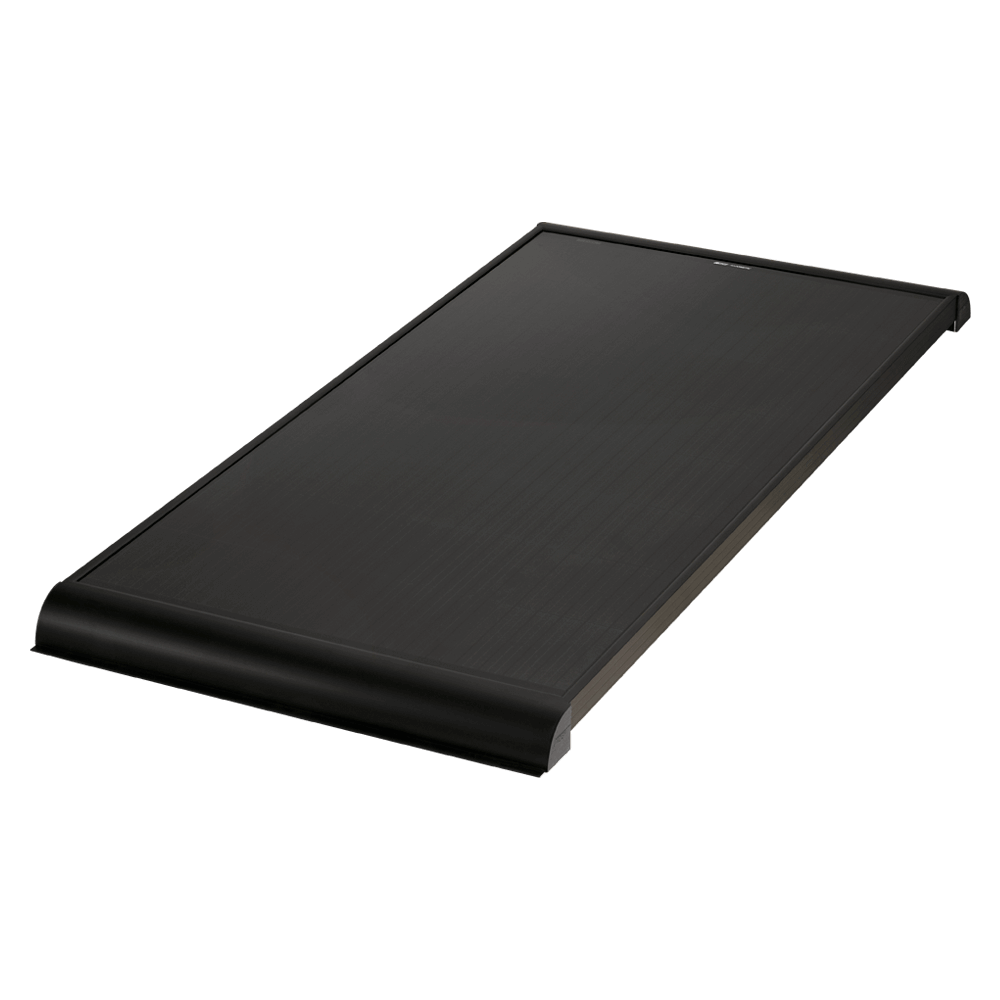

BS 165WP
| Number of cells | 32 |
| Nominal voltage | 12v |
| Max Power | 165WP±3% |
| Size (mm) | 1495x680x60 |
| Weight | 14 Kg |
| Open Circuit Voltage | 21,6V |
| Short Circuit Current | 9,78A |
| Max power Voltage | 17,84V |
| Max power Current | 9,25A |
| Length 6m cable | 2×2,5mm² |

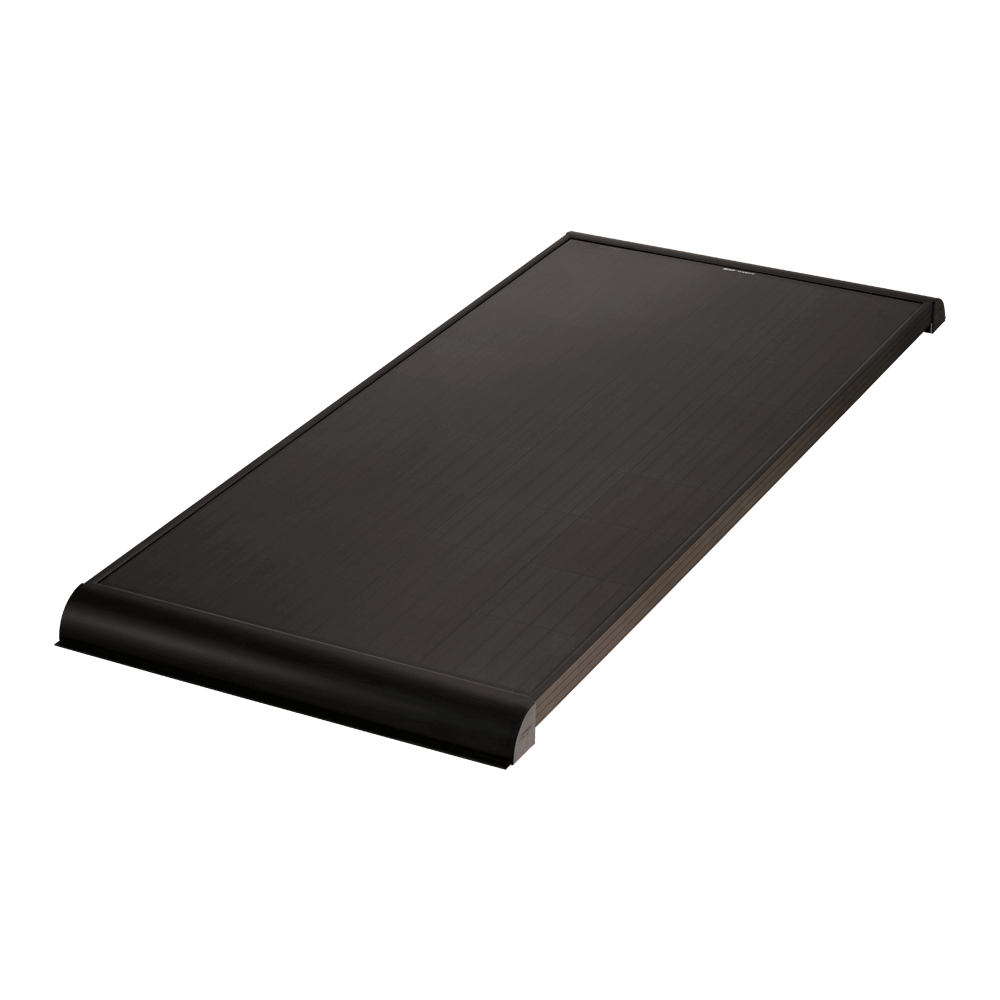

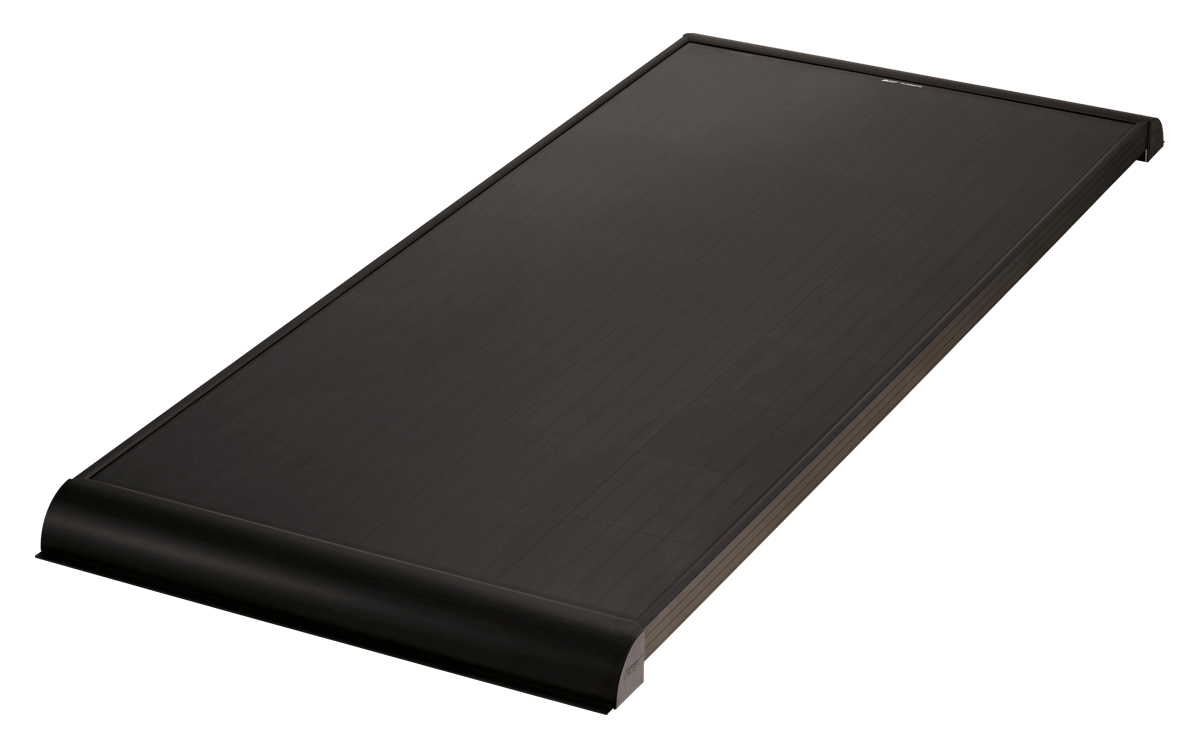

BS 185WP
| Number of cells | 36 |
| Nominal voltage | 12v |
| Max Power | 185WP±3% |
| Size (mm) | 1645x680x60 |
| Weight | 15,5 Kg |
| Open Circuit Voltage | 24,08V |
| Short Circuit Current | 9,81A |
| Max power Voltage | 19,9V |
| Max power Current | 9,3A |
| Length 4m cable | 2x4mm² |

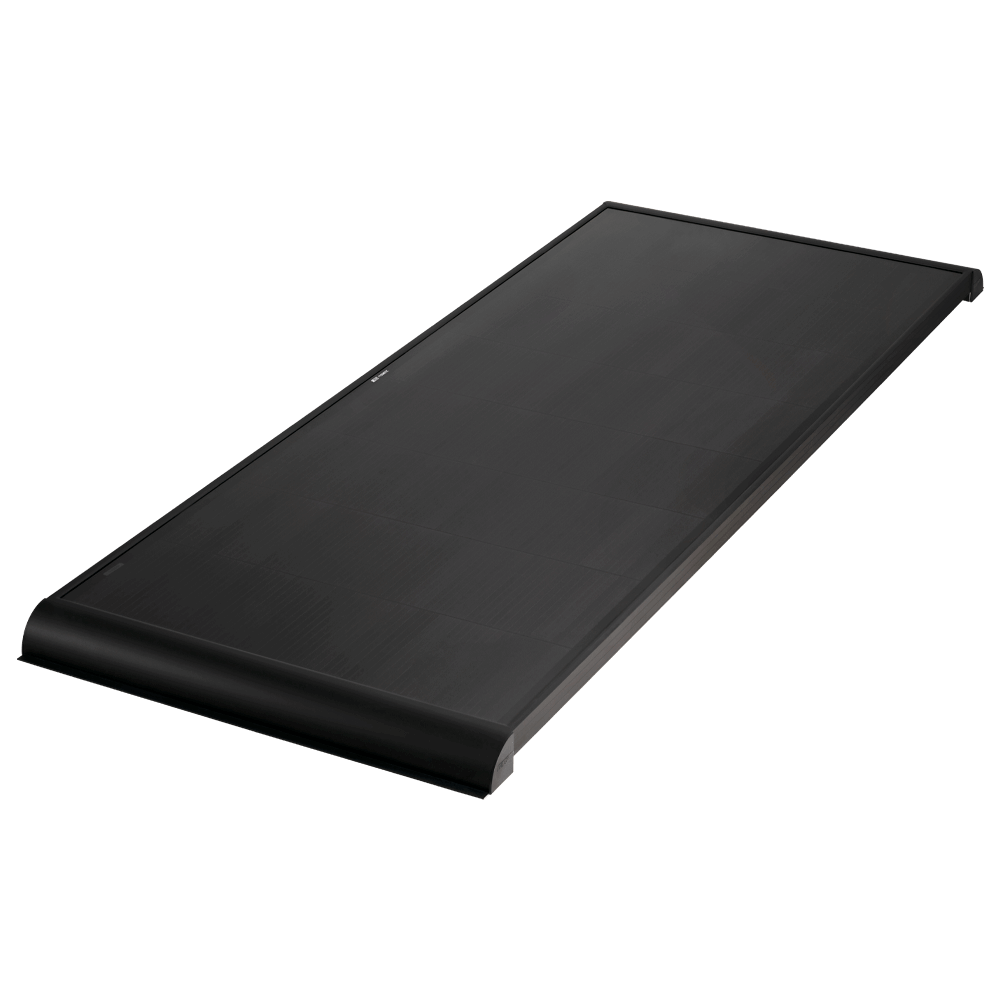

BS 230WP
| Number of cells | 160 |
| Nominal voltage | 12v |
| Max Power | 230WP±3% |
| Size (mm) | 1885x720x60 |
| Weight | 17,5 Kg |
| Open Circuit Voltage | 27.05V |
| Short Circuit Current | 10,91A |
| Max power Voltage | 21.99V |
| Max power Current | 10,46A |
| Length 4m cable | 2x4mm² |
OPTIONAL
Solar Panel
ROOF CONNECTOR for cables management with 2PG
Code PST / PG 9 / PG 13.5
