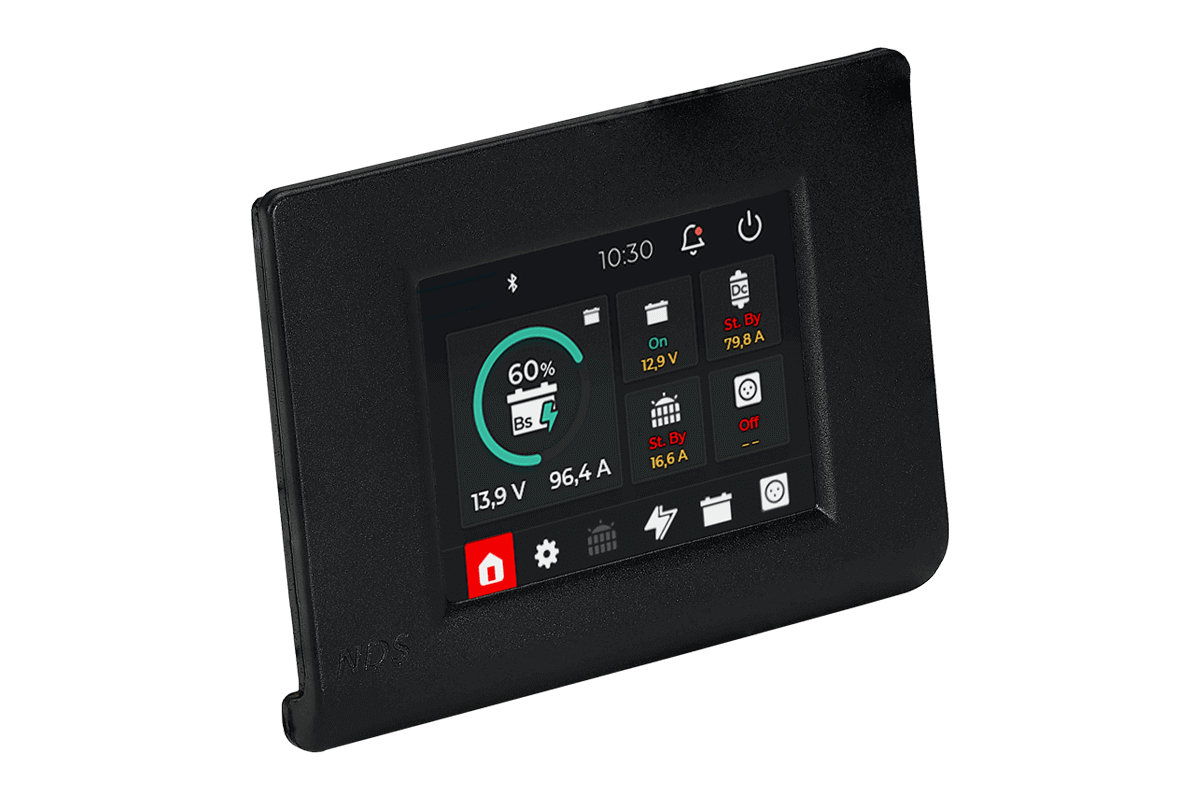

DTB01 Display N-BUS

DTB01 optional N-BUS display

ADVANTAGES
CONTROL OF ALL N-BUS DEVICES FROM A SINGLE DISPLAY
DEDICATED FULL COLOR TOUCH SCREEN DISPLAY
CHECK THE STATE OF CHARGE OF BATTERIES AND CONTROL OTHER DEVICES
A P P L I C A T I O N S

DISPLAY BUS

DTB01 is the optional controller for N-BUS communication protocol devices.

Connect N-BUS devices to each other with the data cable, add the DTB01 Display Bus to the network, and you have all the power of the NDS energy system at your fingertips with a completely new, easy-to-use interface.

With the DTB01 you can control all N-BUS equipped devices such as: Tempra Lithium Battery, Power Service PSB DC-DC, Suncontrol2 SCE, look for the N-BUS logo on the product box to see if your NDS device is also equipped with this protocol.

The control of N-BUS devices is also possible with the DTB01 display using the App for iOS and Android smartphones, if an NDS device with Bluetooth such as Tempra Lithium Battery is present in the N-BUS network.

Main features

  • N-BUS device energy parameter monitoring: State of Charge (SoC) of Tempra battery, Solar Energy, DC-DC charge when vehicle is in motion.
  • Accurate, real-time consumption monitoring.
  • Control of all N-BUS devices to activate or deactivate a device, choose charge curve, select settings in general.
  • Voltage and ampere charge display Date and time.
DISPLAY DTB01
Display type TFT 2,83″ 262k colors with Touch Screen
Average consumption 73mA @ MAX brightness 33mA @ Display OFF
8mA during the night time
Connection type NDS Bus with 8m cable
Working temperature -10°C / +70°C

Examples of screens

NDS CONTROLLER

Display Bus and NDS App mobile

Devices with N-BUS protocol, such as TEMPRA Lithium battery, can be controlled –by a single Display Bus (optional) and NDS mobile app.

Controlling TEMPRA via the Display Bus or via the NDS mobile app is easy and intuitive, you can monitor all battery parameters, check state of charge (SoC), charge and discharge current, health status, automatic or manual battery disconnect function, battery temperature, remaining charge or discharge time.

With Display Bus and NDS App Mobile, your entire energy system is just a click away.
