AC-DC Universal battery charger
ADVANTAGES
PLUG & PLAY , EASY TO USE
UP TO 9 CHARGING STEPS WITH OPTICHARGE FIRMWARE
SUITABLE FOR LiFePO4 BATTERIES (EXCEPT SCS2)
A P P L I C A T I O N S
SMARTCHARGER
SMARTCHARGER is the advanced microprocessor-equipped battery chargers line to meet everyday needs for applications such as marine, motorbike, car, etc.
Depending on the model, it performs up to 9 charging steps; the various stages include diagnosis, which checks whether the battery is in a condition to accept and maintain the charge, desulphation, which helps to
to avoid sulphation, extending battery life, and the latest generation of maintenance phase that keeps the battery at 95-100% capacity, delivering current when the battery starts to discharge, thus not ‘stressing’ it during long charging periods.
(e.g. maintaining motorbike batteries during winter season).
SMARTCHARGER features
- Plug and Play
- Smart charging
- Up to 9 charging steps
- IP65 protection
Easy to
USE
This range is the
ideal solution for every user!
SCS2
| Nominal voltage | 12V |
| Charging current | 2A |
| Charging curves | AGM, Wet Lithium |
| Charging type | 3 steps |
| Activation voltage | 2V |
| Battery charging capacity | 3-40 Ah |
| Battery capacity maintenance |
Up to 80Ah |
| Protection | IP65 |
SCS4
| Nominal voltage | 12V |
| Charging current | 1 – 4A |
| Charging curves | AGM, Flooded, Lithium |
| Charging type | 9 steps |
| Activation voltage | 2V |
| Battery charging capacity | 5-80 Ah |
| Battery maintenance capacity | Up to 100 Ah |
| Protection | IP65 |

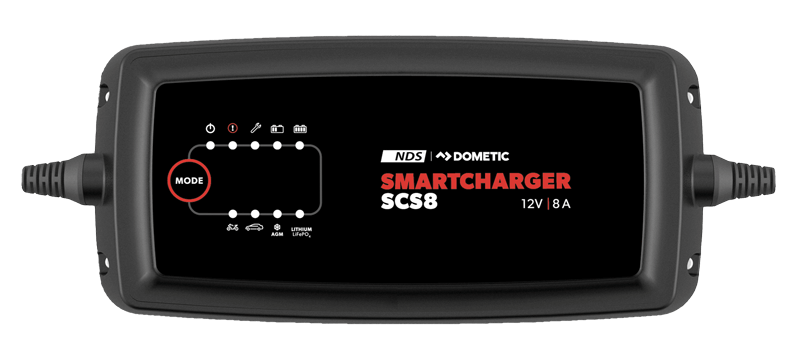

SCS8
| Nominal voltage | 12V |
| Charging current | 2 – 8A |
| Charging curves | AGM, Flooded, Lithium |
| Charging type | 9 steps |
| Activation voltage | 2V |
| Battery charging capacity | 10-160Ah |
| Battery maintenance capacity | Up to 250 Ah |
| Protection | IP65 |

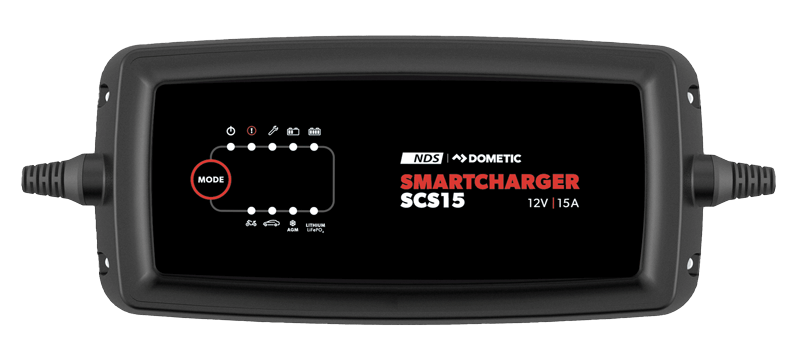

SCS15
| Nominal voltage | 12V |
| Charging current | 2 – 15A |
| Charging curves | AGM, Flooded, Lithium |
| Charging type | 9 steps |
| Activation voltage | 2V |
| Battery charging capacity | 10-250Ah |
| Battery maintenance capacity | Up to 400Ah |
| Protection | IP20 |

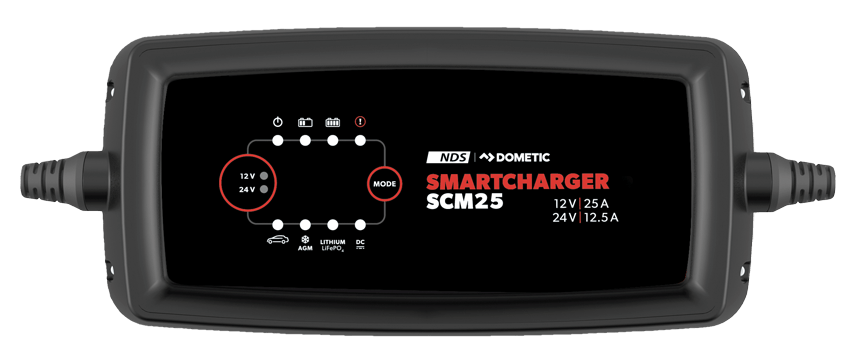

SCM25
| Nominal voltage | 12 – 24V |
| Charging current | 25A – 12,5A |
| Charging curve | AGM, Flooded, Lithium |
| Charging type | 9 steps |
| Activation voltage | 2V |
| Battery charging capacity | 50-350 Ah |
| Battery maintenance capacity | Up to 500Ah |
| Protection | IP20 |
