SUNCONTROL

MPPT regulator with N-BUS

ADVANTAGES
MPPT +30% MORE FROM YOUR SOLAR PANELS
ALSO SUITABLE FOR LiFePO4 BATTERIES
N-BUS COMMUNICATION PROTOCOL
A P P L I C A T I O N S

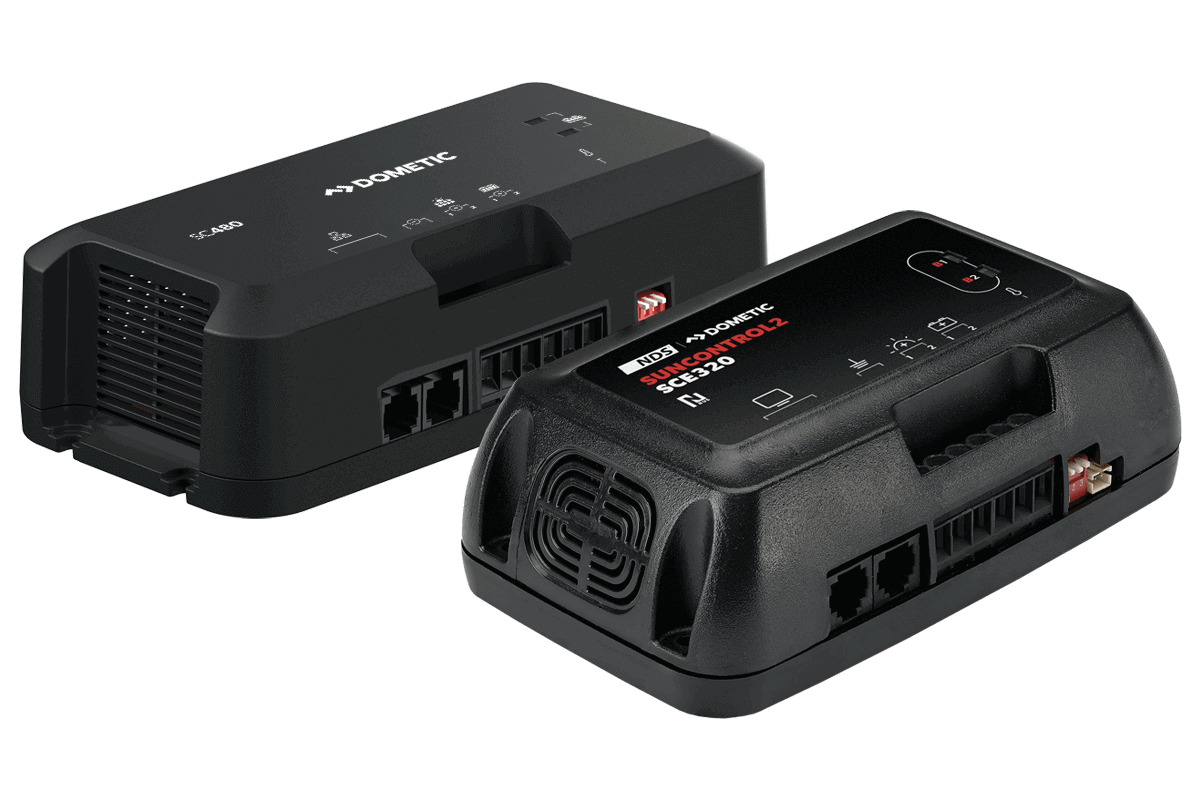

SUNCONTROL

SUNCONTROL is the latest and innovative charge controller for photovoltaic modules from NDS with separate inputs for two solar panels.

The MPPT technology, allows you to maximise the energy from any type of solar panel (12V nominal), performing the most modern charging curves, even for LiFePO4 batteries.

The special OPTICHARGE algorithm developed by the NDS Software Team optimises charging according to the battery needs and extends its life.

SUNCONTROL is equipped with the new N-BUS communication protocol, compatible with Ci-Bus: now you can monitor, control and update all on-board devices from a single NDS Controller.

SUNCONTROL è disponibile in due diverse versioni: SCE 320 per un massimo di 320W complessivi, e SCE 360 che supporta invece fino a 360W complessivi. Both models are available in a Bluetooth version with which the NDS App can be used.

WHAT DOES MPPT MEAN?

This is the algorithm that allows to always exploit the “Maximum power point track” supplied by the panel. A charge regulator with MPPT technology can achieve a significantly higher efficiency than PWM technology (up to 25% more). The MPPT regulator is ideal where space is limited because in less space you get more energy!

WHAT IS N-BUS?

N-BUS is the multi-device communication protocol developed entirely by NDS and compatible with CI-BUS.

With N-BUS your energy devices are connected to each other and exchange information for more efficient on-board energy management. The device network has many advantages, such as easy firmware updates and simplified control with one simple interface.

MAIN FEATURES:

  • Selector for Lithium LiFePO4, AGM, Gel and Wet
  • 6-stage charging curves with Opticharge algorithm
  • N-Bus communication protocol Ci-Bus compatible
  • Display Bus DTB01 e NDS App Mobile connection
  • Starter battery charge
  • Separate inputs for two solar panels
  • Desuphtion option
  • Temperature sensors (optional)
  • Opticharge firmware
  • Display Bus DTB01 (optional)
  • Bluetooth version (for NDS App Control)

NDS CONTROLLER

Display Bus and NDS App mobile

Display Bus e NDS App mobile are the NDS controllers that allow you to manage the entire new NDS energy system.

The new generation of NDS energy devices equipped with N-BUS, such as SUNCONTROL, can be controlled and managed via Display Bus DTB01, or via NDS App (with SUNCONTROL in Bluetooth version). With the controller it is possible to monitor the status and technical parameters of all devices and the on-board energy situation, it is also possible to change the settings of each device, and if a device with Bluetooth Master is present in the N-BUS network, it is also possible to update the firmware of all connected devices.

SUNCONTROL features

CODE SCE 320 SCE 320B SCE 360 SCE 360B SC 330 SC 480
Nominal Voltage 12V 12V 12V 12V 12V 12V
Modules Max Power 320W 320W 360W 360W 330W 480W
Maximum input voltage 30V 30V 30V 30V 33V 33V
Max Charging Current 20A 20A 25A 25A 20A 30A
MPPT System Yes Yes Yes Yes Yes Yes
Protection fuse 30A 30A 30A 30A 30A 30A
It Charges the starter battery Yes Yes Yes Yes Yes Yes
Fan No No Yes Yes No Yes
Bluetooth No Yes No Yes Yes Yes
Size (mm) 151x90x48 151x90x48 151x90x48 151x90x48 151x90x48 151x90x48

F.A.Q.

Where can I find SUNCONTROL SC300M and SC 15-240?

Suncontrol SC300M and SC15-250 are discontinued. If you need to contact our technical staff, or download the manual from here for SC300M and here for SC15-240
