Meter with display
ADVANTAGES
DISPLAY OF BATTERY CHARGE STATUS AND CONSUMPTION
VALID FOR ALL BRANDS OF LITHIUM IRON PHOSPHATE BATTERIES
SOON ALSO AVAILABLE FOR LEAD-ACID BATTERIES
A P P L I C A T I O N S

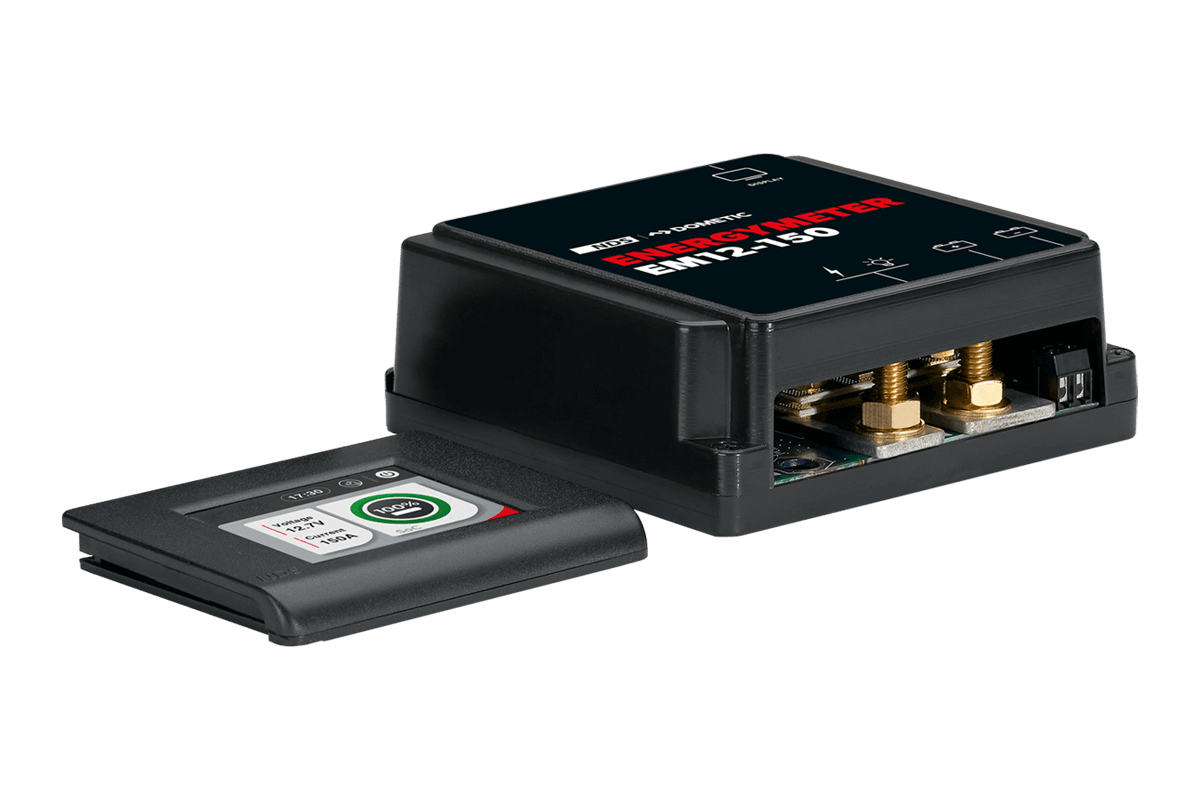

ENERGYMETER
With the ENERGYMETER display, you can keep an eye on the state of charge of any lifepo4 battery at all times. Soon the energy meter will also be able to monitor lead-acid batteries (agm, gel, free acid). the system detects and displays voltage and current input and output from one or more 12v service batteries (connected in parallel with each other).
if you want to manage and monitor several lead-acid batteries separately, choose iManager
The practical touch screen display allows you to set the technology of the connected batteries and to check the state of charge (SoC) and consumption in real time.
Cod. EM 12-150
| BLACK BOX |
|
| Nominal Voltage | 12V |
| Maximum supported capacity | 600Ah |
| Maximum supported current | 150A |
| Current range | -150A/+150A ±10% |
| Size | 125x123x47mm |
| Weight | 480g |
| Working temperature | -20°C/+65°C |
| Average consumption device on | [email protected] |
| Average consumption device stand-by | [email protected] |
| DISPLAY | |
| Display Technology | TFT 2,83″ 262k colors with Touch Screen |
| Average consumption device on | 73mA @ maximum brightness
33mA @ Display OFF 8mA light time |
| Connection type | RS232 with 8m cable |
| Working temperature | -10°C / +70°C |
| Size | 100x80x11mm |
| Weight | 55g |
