Automatic Split Charge relay
AUTOMATIC PARALLELING FOR ENGINE BATTERY, SERVICES BATTERY
MANUAL AND AUTOMATIC BATTERY SWITCH-OFF FUNCTION
A P P L I C A T I O N S

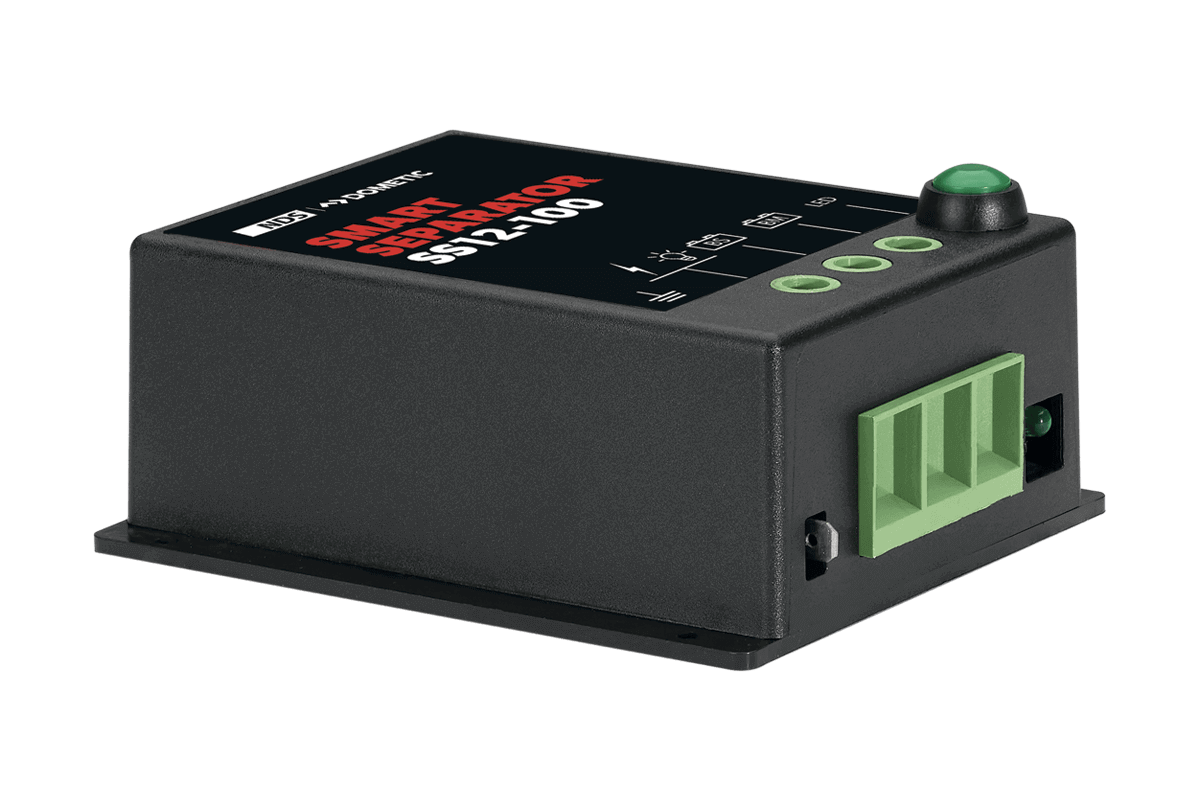

SMARTSEPARATOR is an automatic device that allows onboard management of a Starter battery and a Leisure battery. The integrated microprocessor will be able to monitor the voltages of the connected batteries automatically and will manage the main parallel function between the starter battery and the leisure battery only if the starter battery is in a charging state.
This function allows vehicles to recharge the leisure battery with a simple and quick installation without having to use a split charge relais controlled by an Ignition Signal or D+. Another important function is the manual or automatic battery cut-off function, which prevents deep discharges if the leisure battery voltage falls below the critical threshold of 10.5V.
Code SS 12-100
|Split charge relais On/Off voltage threshold
|13,3V / 12,7V
|Battery switchoff voltage threshold
|10,6V / 12V
