TEMPRA

Top notch LITHIUM BATTERY

ADVANTAGES
+50% CAPACITY
SAME L5 BOX SIZE
COMPATIBLE WITH ANY CHARGER
MOBILE APP FOR iOS AND ANDROID, BLUETOOTH, OPTIONAL DISPLAY
OPERATIONAL EVEN AT -30°C
(HEATED MODEL)
A P P L I C A T I O N S

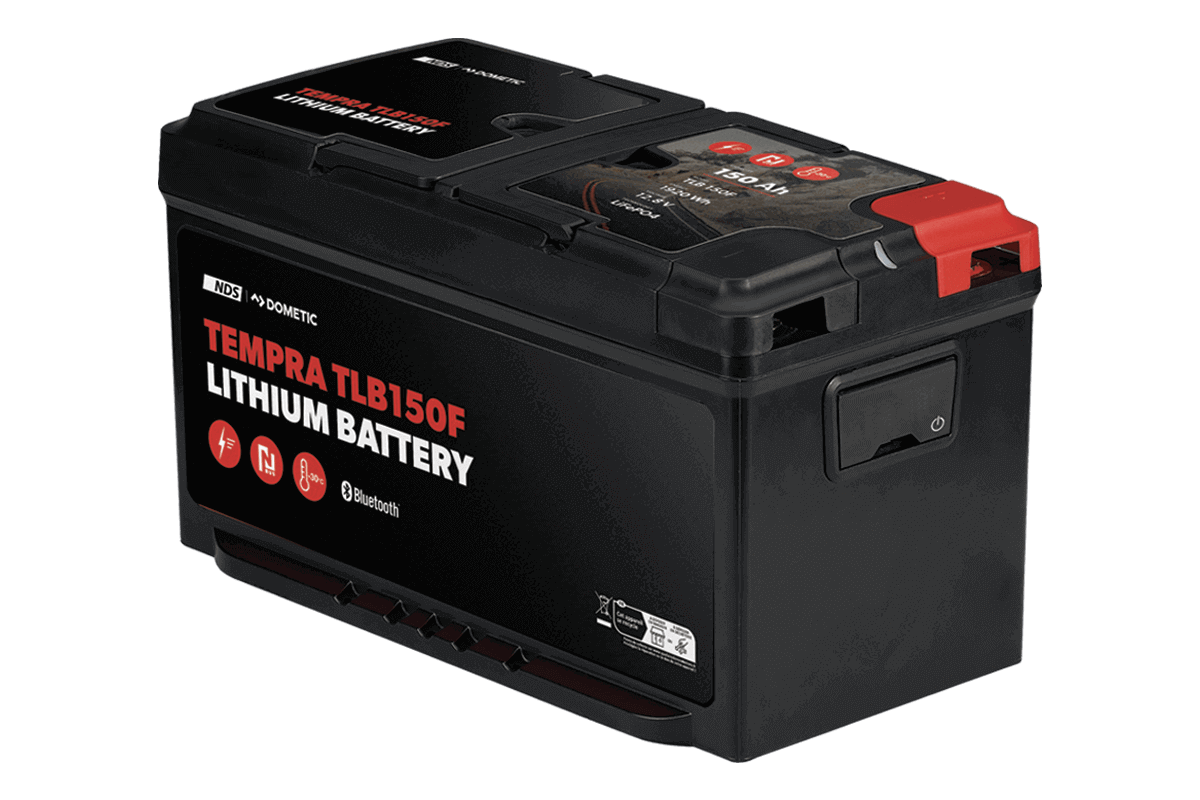

TEMPRA LITHIUM BATTERY is the new generation LiFePO4 top notch battery, designed and manufactured entirely in Italy.

The TEMPRA battery has the best power-to-weight ratio on the market thanks to the new NDS HDP (high density power) cells, a concentration of power in reduced space!

Up to 150Ah capacity in the dimensions of a classic L5 box size. The L5 box is a standard one which usually contains a maximum of 100Ah and which fits under the Fiat Ducato seat.

Where before there were 100Ah, now there are 150Ah: 50% more autonomy for your holidays. Up to 150Ah capacity in the size of a standard L5 box (fits under the Fiat Ducato seat). The safety systems of the new BMS also include optimal charge management, so you can connect your TEMPRA battery to any charger, even those designed for lead-acid batteries. The charge management and Smart Balance of the BMS ensure that the cells are always efficient and perform over time. The heated versions provide for use in extreme temperatures, down to a maximum of -30°C, so that the batteries can be used in all weather conditions. The N-BUS system makes the TEMPRA battery an integral part of the NDS energy ecosystem that can be controlled via Display Bus DTB and NDS Mobile app.

TEMPRA, Top notch NDS Lithium Battery

+50% CAPACITY, SAME L5 BOX SIZE

he new NDS HDP cells (high density power) concentrate enormous power in a small space, achieving the best power-to-weight ratio in its class. TEMPRA has 50% more autonomy, Keeping the same dimensions of a L5 box: where usually the maximum capacity is 100Ah with TEMPRA you have up to 150Ah! La TEMPRA ha il +50% di autonomia in più, nelle stesse dimensioni di una cassetta L5: dove solitamente la capacità massima è di 100Ah con TEMPRA hai fino a 150Ah!

COMPATIBLE WITH ANY CHARGER AND CHARGING SOURCE

The TEMPRA battery’s internal control and safety systems automatically regulate the charge input to the battery. This means that you can connect the battery to any existing charging source without any problems, even with a charger that is not suitable for LiFePO4 batteries, such as those for Lead-Acid batteries.

OPERATIONAL EVEN AT LOW TEMPERATURES

Thanks to the heating function (for models which have this function), your TEMPRA battery works perfectly down to -30°C.

SMART BMS

The BMS is the most important and complex part of the Lithium battery. The BMS is the brain that manages all the functions, which is why NDS has decided to design its Battery Management System in detail. This means that everything is always under control and safe, both for the battery and the user.

EVERYTHING UNDER CONTROL WITH DISPLAY AND MOBILE APP

TEMPRA is equipped with the new N-BUS communication protocol that allows all devices (equipped with the same protocol) to be connected in a single energy network. With just one control device: DISPLAY BUS DTB01 or with NDS APP MOBILE, you can control all connected devices, monitor their status and even update them to the latest firmware version (if there is a Bluetooth master in the N-BUS network).

Relaxing at the perfect temperature thanks to the air-conditioning, enjoying an hot coffee at the touch of a button, showering and being able to dry your hair afterward, are luxuries that you can usually only enjoy when your motorhome is connected to the mains hook-up. Not anymore,thanks to TEMPRA LITHIUM BATTERY

Icon-MACCHINA_CAFFE

COFFEE MACHINE

Icon-MICROONDE

MICROWAVE

Icon-CLIMA

AIR CONDITIONER

Icon-PHON

HAIR DRYER

Icon-E-BIKE

E-BIKE

Advantages of a Lithium battery

FAST CHARGE

The TEMPRA battery accepts super-fast charges up to 1C. Simply switch on the vehicle engine for 30 minutes to ensure a day’s autonomy!

ZERO MAINTENANCE

Chemistry and internal electronics work together to make this type of battery completely maintenance-free.

70% LESS WEIGHT

The high-density HDP NDS cells with chemistry (LiFePO4) make TEMPRA a powerhouse, and the weight saving is incredible: over 70% less weight than a lead/acid battery of the same capacity!

HIGH NUMBER OF CYCLES

The charging cycles of a lithium battery can seem almost infinite! It is possible to reach 3000 cycles with 80% depth of discharge, but avoiding excessive discharges, it can reach up to 5000!

HEAVY-DUTY RESISTANT

Up to 4 hours with air conditioning on and up to 50% longer battery life than a conventional lithium battery.
The
TEMPRA battery withstands, without damage, heavy energy demands such as air conditioning, coffee machines, hair dryers and general inverter use.

SAFE AND RELIABLE

The chemistry (LiFePO4) gives the battery an innate thermodynamic stability, the powerful integrated BMS (Battery Management System) protects the battery from incorrect charging voltages, short circuit/polarity reversal, overvoltage, over-discharge.

TEMPRA Lithium Battery

Ci-Bus

Ci-BUS Compatible

The new NDS N-BUS protocol devices are also compatible with the Ci-BUS protocol.

Logo_Bluetooth

Bluetooth 5.0

N-BUS devices equipped with Bluetooth can be controlled via the NDS Mobile App, which can be downloaded from Google Play or the App Store. In addition, if there is a Bluetooth Master device in the N-BUS network, such as the TEMPRA Lithium battery, the NDS App allows the firmware of all connected N-BUS devices to be updated.

NDS CONTROLLER

Display Bus and NDS App mobile

Devices with N-BUS protocol, such as TEMPRA Lithium battery, can be controlled –by a single Display Bus (optional) and NDS mobile app.

Controlling TEMPRA via the Display Bus or via the NDS mobile app is easy and intuitive, you can monitor all battery parameters, check state of charge (SoC), charge and discharge current, health status, automatic or manual battery disconnect function, battery temperature, remaining charge or discharge time.

With Display Bus and NDS App Mobile, your entire energy system is just a click away.

DISPLAY BUS DTB01 (OPTIONAL)

AVAILABLE MODELS AND TECHNICAL DETAILS

Code Model TLB 100 TLB 100 F TLB 120 TLB 120 F TLB 150 TLB 150 F
Nominal Voltage
12,8Vdc 12,8Vdc 12,8Vdc 12,8Vdc 12,8Vdc 12,8Vdc
Capacity 100Ah 100Ah 120Ah 120Ah 150Ah 150Ah
Recommended maximum discharge

100A 100A 120A 120A 135A 135A
Max discharging supported

200A / 60sec 200A / 60sec 200A / 60sec 200A / 60sec 200A / 150sec 200A / 150sec
Max charging current

100A / 1C 100A / 1C 120A / 1C 120A / 1C 150A / 1C 150A / 1C
Charging temperature

-10°C / +60°C -30°C / +60°C -10°C / +60°C -30°C / +60°C -10°C / +60°C -30°C / +60°C
Discharging temperature

-20°C / +60°C -20°C / +60°C -20°C / +60°C -20°C / +60°C -20°C / +60°C -20°C / +60°C
Weight 12,8 Kg 12,8 Kg 13,5 Kg 13,5 Kg 16,1 Kg 16,1 Kg
Size (mm) 341x176x190h 341x176x190h 341x176x190h 341x176x190h 341x176x190h 341x176x190h

With TEMPRA you can connect up to 4 batteries

BEST WITH

Best with:
SMARTCHARGER SCS4

Best with:
SMARTCHARGER SCS8

Best with:
SMARTCHARGER SCS15
