New Generation DC-DC Booster
ADVANTAGES
UP TO 80A POWER
ALSO WITH SMART ALTERNATOR (EURO6)
N-BUS COMMUNICATION PROTOCOL
AUX BYPASS
A P P L I C A T I O N S
MAXIMUM CHARGING POWER, WHILE TRAVELLING. EVEN WITH EURO6 AND SMART ALTERNATOR!
Charge while you travel, arrive at your destination with 100% batteries, don’t run out of power, avoid all generators and extra fuel, travel lighter and above all enjoy your holidays! PSB Power Service: up to 80A of power always available to charge your batteries quickly, anywhere.

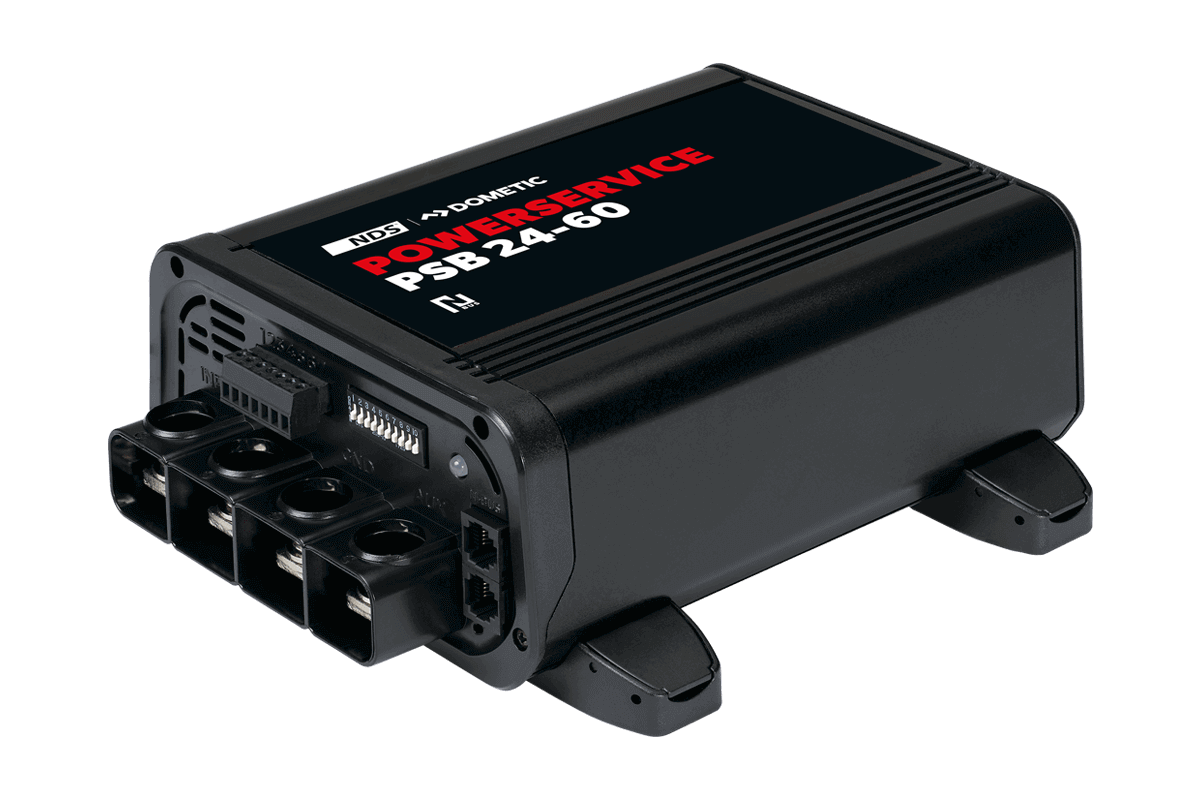

POWERSERVICE PSB
The new DC-DCs of the POWERSERVICE PSB series are powerful travel chargers that are also highly efficient with Smart Alternator (Euro 6) vehicles. High charging currents (up to 80A) make PSBs ideal for fast charging Lithium batteries or high capacity traditional systems; Buck Booster technology, stabilizes the charge making PSBs ideal for all vehicles or boats, where fast and correct charging of leisure batteries of any technology is important: Lithium LiFePO4, AGM, Gel, Flooded.
All PSBs are equipped with the intelligent OPTICHARGE system which optimises the performance and yield of Leisure batteries by selecting a specific charging curve for each technology and specific charging curve selection and the state of charge analysis algorithm developed by the NDS Software Team.
The POWERSERVICE PSB is the only device on the market with an AUX connection, allowing the PSB to be installed in vehicles with existing charging systems. When the vehicle is in motion, the AUX relay shifts all the loads connected in the control unit to the engine battery, thus bypassing the existing parallel charging connection, so the leisure battery will be recharged directly, at maximum performance.
As well as power, safety is also important. PSB protection systems prevent the alternator from overloading and the engine battery from running out of power.
Why choosing
POWERSERVICE PSB
Full charge in less time, to have full autonomy during your stops.
Extend the life of your batteries with specific charging curves for all battery technologies.
MAIN FEATURES:
- Up to 80A power
- Selectable charging power (for higher performance models)
- Up to 8 charging stages
- Buck Booster technology for super stable charging
- Aux bypass for direct connection of extra loads to the alternator
- Opticharge firmware
- N-Bus communication protocol
- Optional Bus display
- Specific charging curve for batteries: Lithium LiFePO4, AGM, Gel, Flooded
- Alternator and starter battery always safe from overload, unexpected stress and undervoltage
NDS CONTROLLER

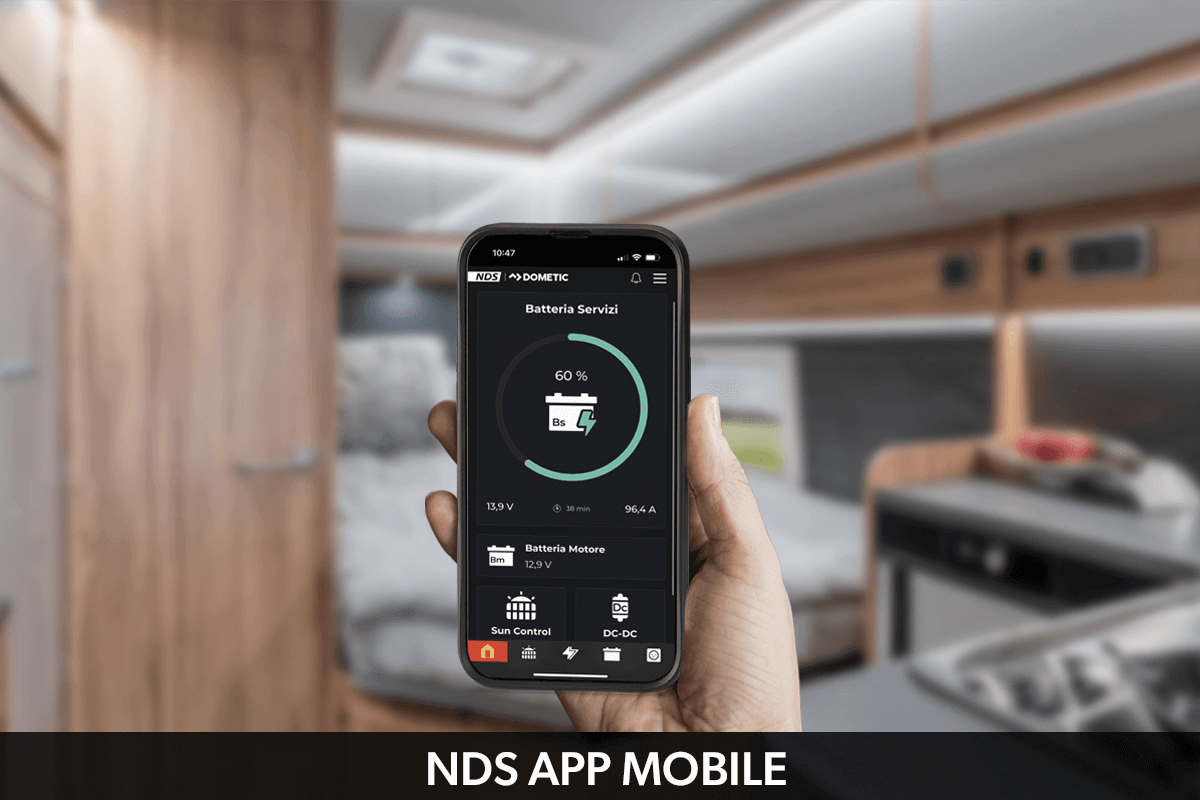

Display Bus and NDS App mobile
Devices with N-BUS, protocol, such as POWERSERVICE PSB, can be managed by a single Display Bus (optional) and NDS Mobile App (if there is a Bluetooth NDS device in the same network). Discover how easy it is to control PSB via the Display Bus (or via dip switches): set the desired charge curve, the charge current limit, is always at your disposal, just a click away.
DISPLAY BUS DTB01 (OPTIONAL)
Models
| Code | Alternator Minimum Power |
Nominal Voltage |
Maximum Selectable |
|||
| Input | Output | Charging Current | ||||
| PSB 12-40 | 90A | 12V | 12V | 40A | ||
| PSB 12-80 | 140A | 12V | 12V | 40A / 60A / 80A | ||
| PSB 24-30 | 70A | 24V | 24V | 30A | ||
| PSB 24-60 | 100A | 24V | 24V | 30A / 45A / 60A | ||
| PSB 24/12-40 | 55A | 24V | 12V | 40A | ||
| PSB 24/12-80 | 70A | 24V | 12V | 40A / 60A / 80A | ||
| PSB 12/24-20 | 90A | 12V | 24V | 20A | ||
| PSB 12/24-40 | 140A | 12V | 24V | 40A | ||
